SPEC 70230
300V SJTW Cord with Black Jacket 105°C. Silicone Free
300 Volt, 105°C Flexible Cord. Heat and Moisture PVC Insulation and Sunlight, Heat, and Moisture and Flexible PVC Jacket. Approved for Outdoor use. Rated UL VW-1 and CSA FT1, FT2 Flame Resistant.

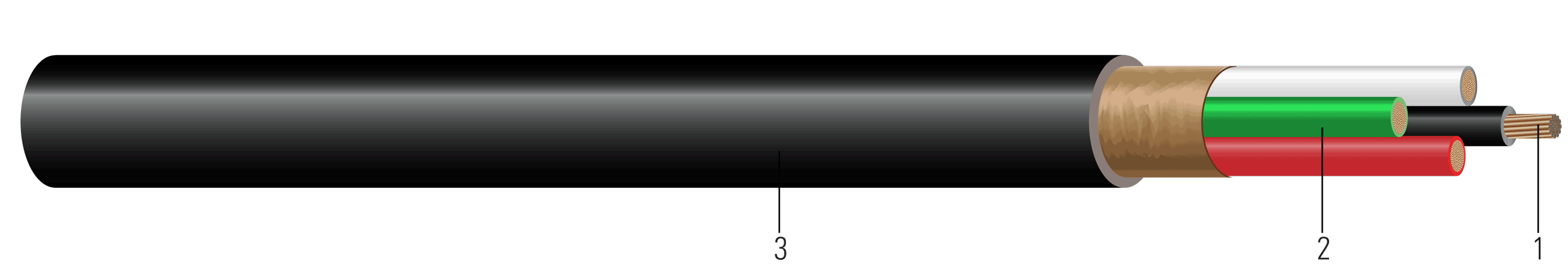

Construction:
- Conductor:Class K or Class M, Flexible stranded bare copper per ASTM B3 and B174
- Insulation:Heat and moisture resistant colored PVC (other color options available)
- Jacket:Black Sunlight, Heat, and Moisture Resistant PVC (Other colors available upon request)
Applications and Features:
Southwire Type SJTW Flexible Cords UL/ CSA listed are permitted for use as specified by Article 400 and related articles of the 2020 National Electrical Code. The cable is water and weather resistant, designed for small power tools, motors, and temporary electrical power and lighting installations for construction sites. The insulated conductors are cabled together without fillers. A tissue paper separator is helically applied over the cabled assembly to facilitate overall jacket removal.
Specifications:
Sample Print Legend:
SOUTHWIRE® {UL} VW-1 E46194 SJTW X/C XX AWG (X.XX{mm2}) 105{D}C DRY 60{D}C WATER RESISTANT 300V {CSA} FT1,FT2 LL90458
Packaging:
Standard lengths: 250', 500' and 1,000' reels. Other lengths available upon request.
Table 1 – Weights and Measurements
| Cond. Size | Cond. Number | Cond. Strands | Insul. Thickness | Jacket Thickness | Approx. OD | Approx. Weight | Ampacity * |
|---|---|---|---|---|---|---|---|
| AWG/Kcmil | Count | # x AWG | mil | mil | inch | lb/1000ft | Amp |
| 18 | 2 | 16/30 | 30 | 30 | 0.3 | 46 | 10 |
| 18 | 3 | 16/30 | 30 | 30 | 0.31 | 55 | 10 |
| 18 | 4 | 16/30 | 30 | 30 | 0.34 | 70 | 7 |
| 16 | 2 | 26/30 | 30 | 30 | 0.32 | 58 | 13 |
| 16 | 3 | 26/30 | 30 | 30 | 0.33 | 68 | 13 |
| 14 | 2 | 41/30 | 30 | 30 | 0.34 | 72 | 18 |
| 14 | 3 | 41/30 | 30 | 30 | 0.37 | 88 | 18 |
| 14 | 4 | 41/30 | 30 | 30 | 0.4 | 113 | 15 |
| 14 | 5 | 41/30 | 30 | 30 | 0.47 | 151 | 15 |
| 12 | 2 | 65/30 | 30 | 30 | 0.42 | 110 | 25 |
| 12 | 3 | 65/30 | 30 | 45 | 0.45 | 139 | 25 |
| 12 | 4 | 65/30 | 30 | 45 | 0.48 | 167 | 20 |
All dimensions are nominal and subject to normal manufacturing tolerances
◊ Cable marked with this symbol is a standard stock item
* Ampacities are based on TABLE 400.5(A)(1) of the 2020 National Electrical Code and CEC Table 12.
Table 2 – Weights and Measurements (Metric)
| Cond. Size | Cond. Number | Cond. Strands | Insul. Thickness | Jacket Thickness | Approx. OD | Approx. Weight | Ampacity * |
|---|---|---|---|---|---|---|---|
| AWG/Kcmil | Count | # x AWG | mm | mm | mm | kg/km | Amp |
| 18 | 2 | 16/30 | 0.76 | 0.76 | 7.62 | 68 | 10 |
| 18 | 3 | 16/30 | 0.76 | 0.76 | 7.87 | 82 | 10 |
| 18 | 4 | 16/30 | 0.76 | 0.76 | 8.64 | 104 | 7 |
| 16 | 2 | 26/30 | 0.76 | 0.76 | 8.13 | 86 | 13 |
| 16 | 3 | 26/30 | 0.76 | 0.76 | 8.38 | 101 | 13 |
| 14 | 2 | 41/30 | 0.76 | 0.76 | 8.64 | 107 | 18 |
| 14 | 3 | 41/30 | 0.76 | 0.76 | 9.40 | 131 | 18 |
| 14 | 4 | 41/30 | 0.76 | 0.76 | 10.16 | 168 | 15 |
| 14 | 5 | 41/30 | 0.76 | 0.76 | 11.94 | 225 | 15 |
| 12 | 2 | 65/30 | 0.76 | 0.76 | 10.67 | 164 | 25 |
| 12 | 3 | 65/30 | 0.76 | 1.14 | 11.43 | 207 | 25 |
| 12 | 4 | 65/30 | 0.76 | 1.14 | 12.19 | 249 | 20 |
Color Code and Stock Numbers Black Jacket
| Color. (Jacket Color) | Number of Conductors | Size | ||||
|---|---|---|---|---|---|---|
| 18 | 16 | 14 | 12 | 10 | ||
| BLK, WHT (Black) | 2 | 565107 | 556595 | |||
| RED, LIGHT BLU (Black) | 2 | 590197 | ||||
| BLK, WHT, GRN (Black) | 3 | 566328 | 558533 | 558358 | 571238 | 679321 |
| BLK, WHT, GRN (White) | 3 | 586343 | ||||
| BLK, WHT, GRN/YLW (Black) | 3 | 564564 | ||||
| BLU, BRN, GRN/YLW (Black) | 3 | 566544 | ||||
| BLK, WHT, RED, GRN (Black) | 4 | 557966 | ||||
| BLK, WHT, RED, GRN/YLW (Black) | 4 | 564436 | 559331 | |||
| BLK, WHT, RED, ORG, GRN (Black) | 5 | 565338 | ||||
Stock No: 565107 18-16 CU 2/C BLACK/WHITE CONTAINS FILLERS
Revision: 3.0.00M
